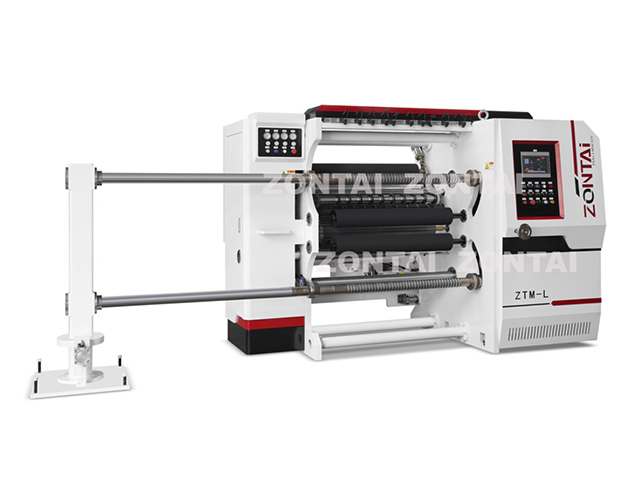

ZTM-L Aluminum Foil Slitter Rewinder Machine

The machine applies to slit pure aluminum foil 6mircons-20mircons, PET, OPP, CPP, PE, PS, PVC and computer security labels, electronic computers, optical materials, release film, film roll, foil roll, all kinds of paper rolls, film and printing of various materials.,etc, thickness 12-200mircons.

Contact us

Mobile+86-13616602974

Whatsapp8613616602974

Wechat+86-13616602974

E-mailzhongtai@cnslittingmachine.com

Description:

ZTM-L Aluminum foil slitter rewinder machine

The machine applies to slit pure aluminum foil 6mircons-20mircons, PET, OPP, CPP, PE, PS, PVC and computer security labels, electronic computers, optical materials, release film, film roll, foil roll, all kinds of paper rolls, film and printing of various materials.,etc, thickness 12-200mircons.

Features:

1. Unwinder adopts shaft-less type auto loader, Japanese SMC hydraulic cylinder automatic lift up, uses hydraulic loading system.

2. Unwinder tension ’s actuator is 1 set servo motor and driver, through PLC and load cell to achieve a close loop tension.

3. Rewinder use both pneumatic friction shafts and air shafts 3inch

4. Slitting system use both circular knives and razor knives.

5. Rewinders uses 2 motors control each shaft

6. Use good imported brand LPC webguide and PLC system

7. Speed max. 500m/min

8. Mostly suitable for pure aluminum foil, thickness 6mircons and up.

Main technical parameter:

Model

ZTM-L 1000

ZTM-L 1300

Jumbo roll width

1000mm

1300mm

Diameter of roll

Ø1000mm

Ø1000mm

Diameter of rewinding

Ø800mm

Ø800mm

Inner diameter of paper core

3’’or 76mm(optional:6’’or 152mm)

3’’or 76mm(optional:6’’or 152mm)

Slitting speed

10-500m/min

10-500m/min

Tolerance of EPC

≤0.1mm

≤0.1mm

Min.width of produce

50mm

50mm

Total power

25KW

28KW

Weight

4500Kg

5000Kg

overall dimension (L X W X H)

2300mm x 3800mm x 1950mm

2300mm x4100mm x 1950mm

If you have any enquiry about quotation or cooperation,please feel free to email us at or use the following enquiry form. Our sales will contact you within 24 hours. Thank you for your interest in our products.
